PCAN-USB FD IPEH-004022

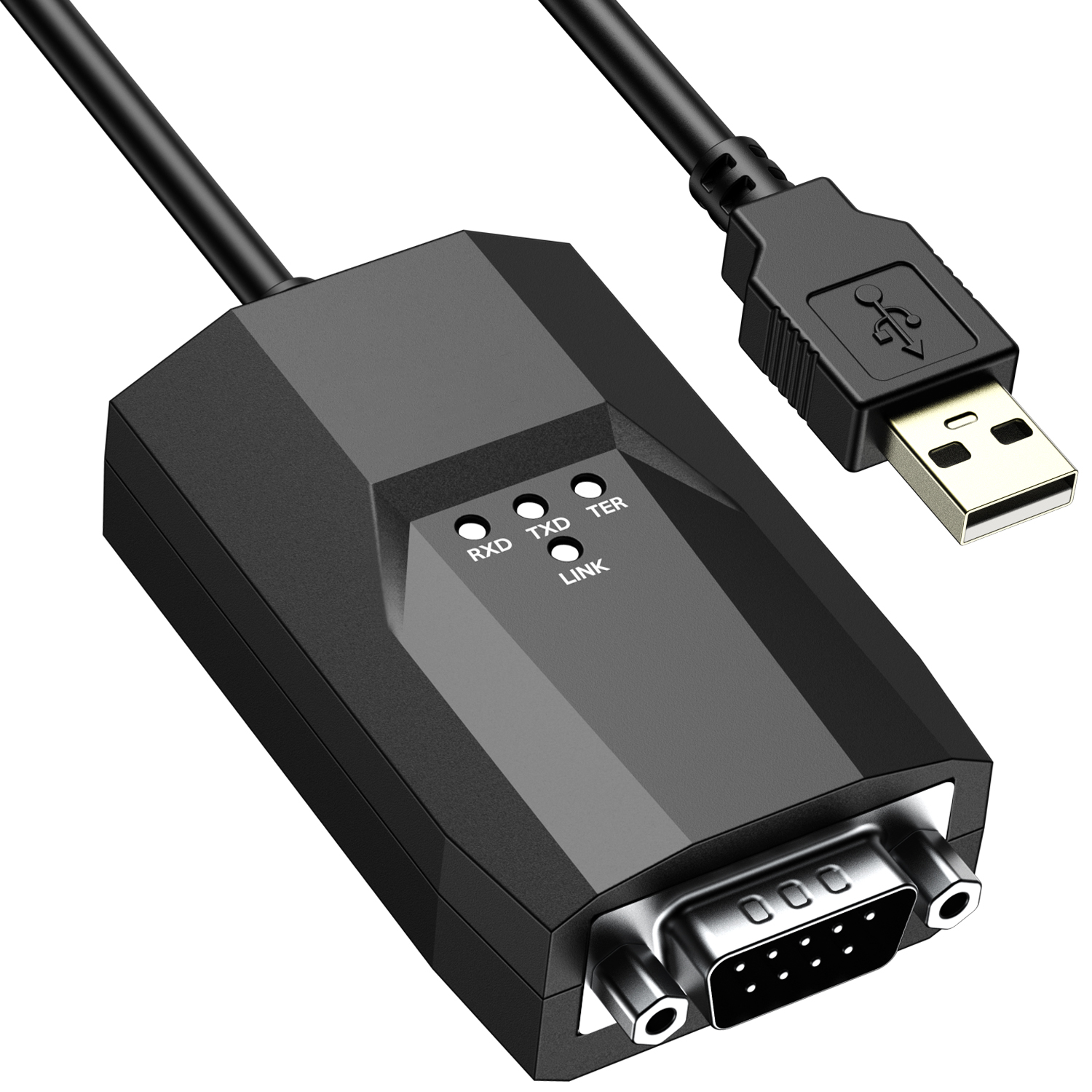

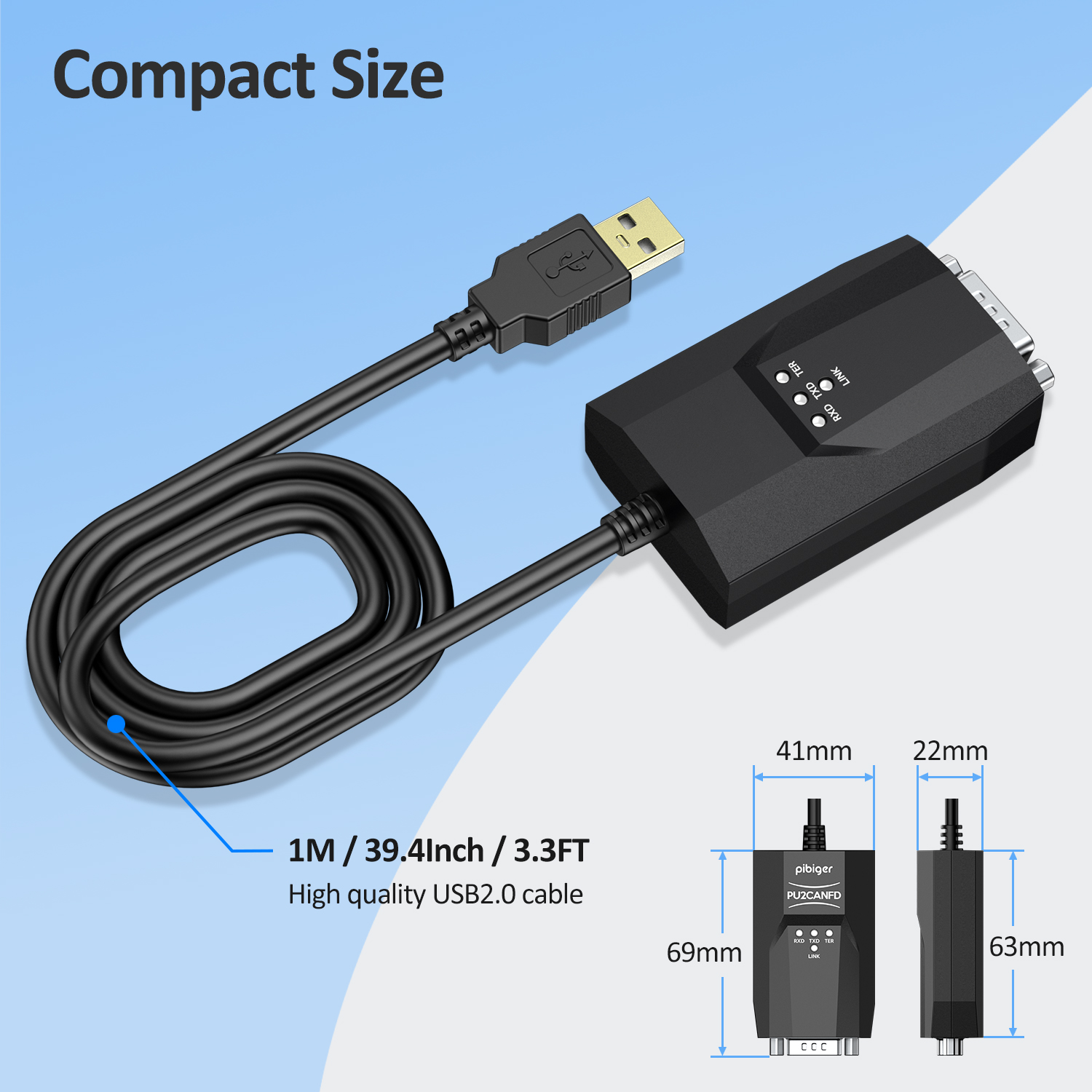

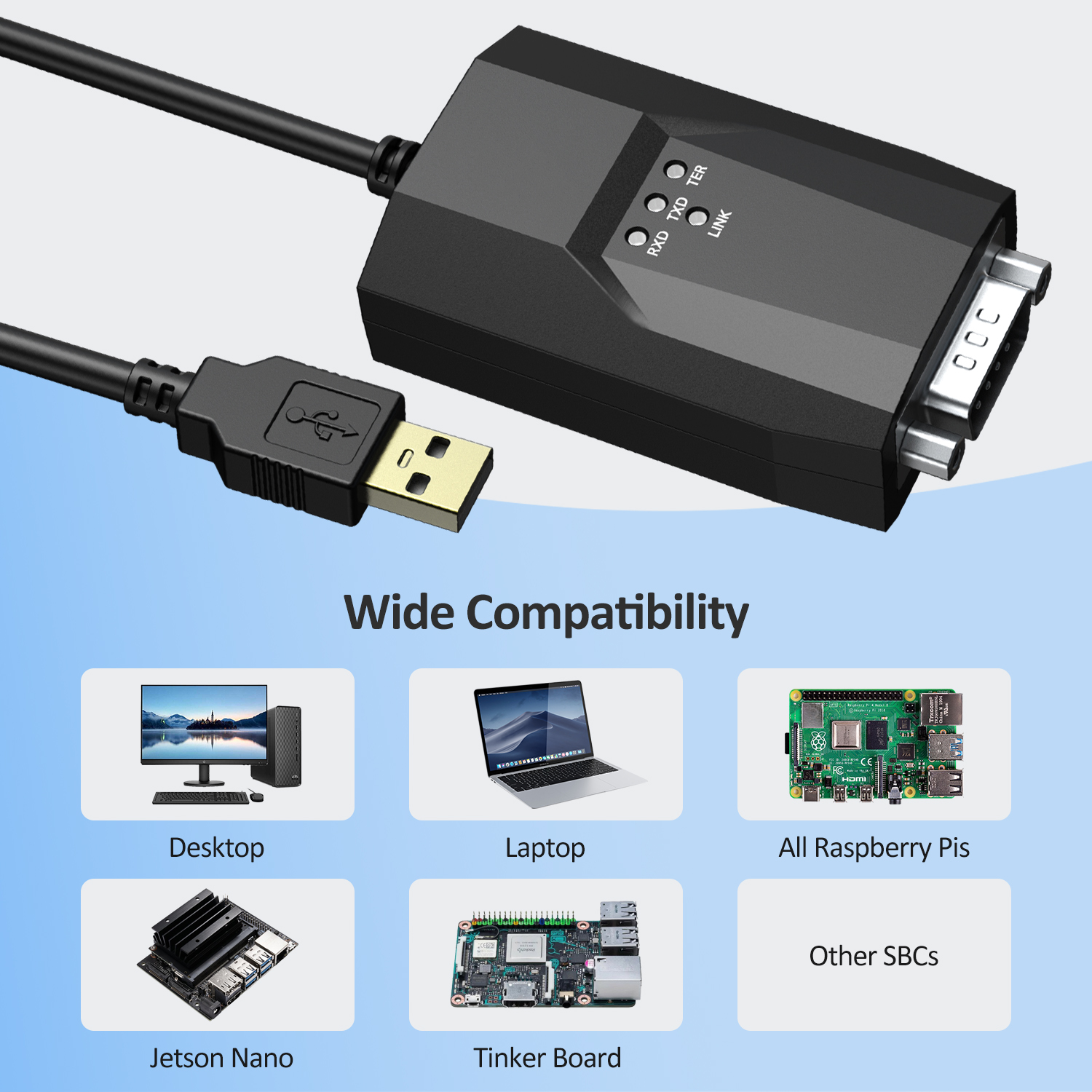

The PU2CANFD-C is a plug and play high speed USB2.0 to CANFD converter comes with 1.2m high quality Cable enables the connection of one channel CANFD networks to a computer via USB. CANFD is isolated protection against USB 2500V.

1 Description

• The PU2CANFD-C is a plug and play high speed USB2.0 to CANFD Cable with 1 metre high quality wire-shielding cable enble the CANFD connection to CAN networks from a computer. The CANFD channel is isolated against USB with a maximum of 2500V.
• The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s, PU2CANFD-C supports 120ohm termination resistor enable by software.

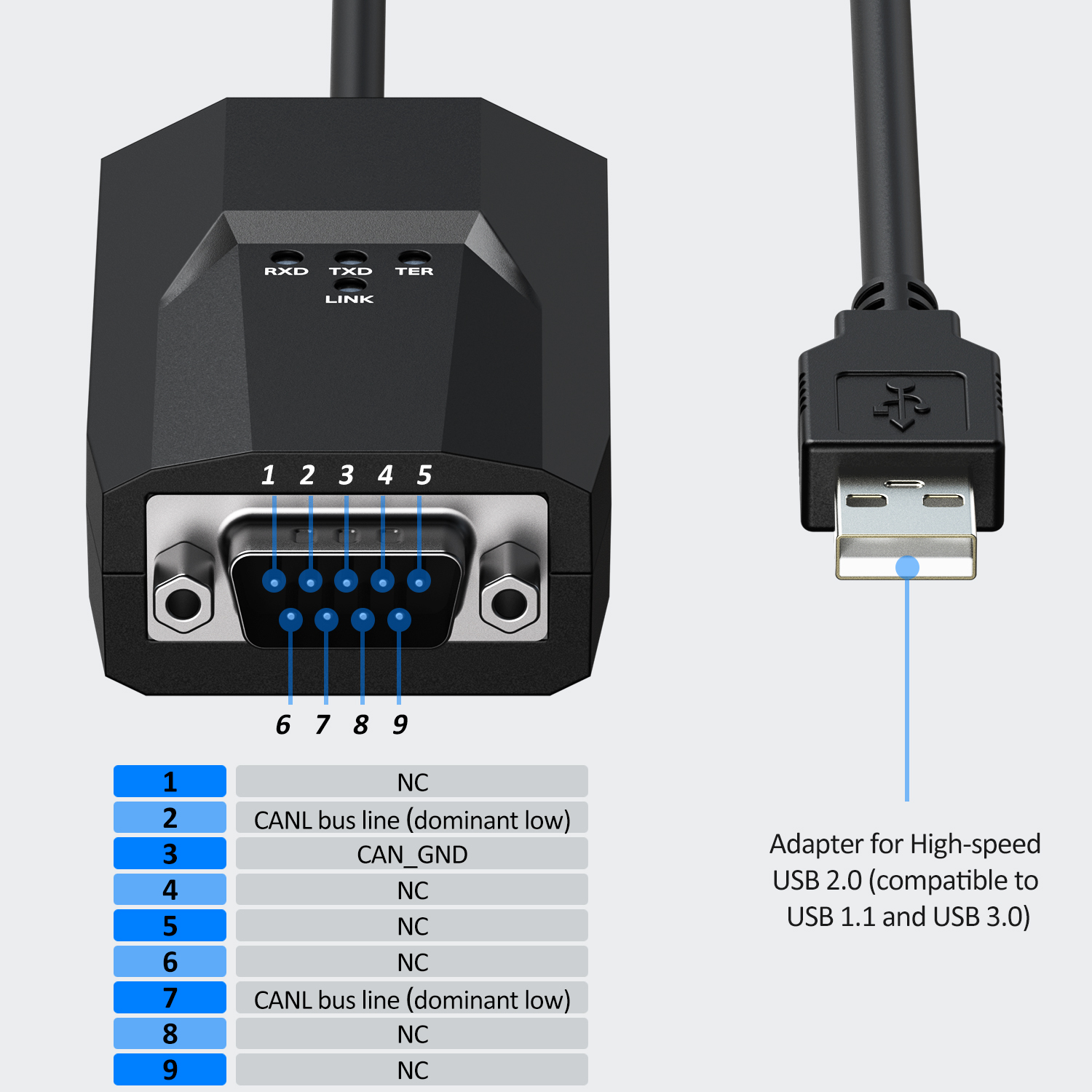

• CAN bus connection via D-Sub, 9-pin (in accordance with CiA@303-1)
• Provide Drivers for Windows/Linux, Compatible with windows PCAN-View,Linux Socket CAN,SavvyCAN.
• The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN connection are included in the scope of supply and support the new standard CAN FD.

2 CAN operation properties

• Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0) </br>
• Complies with CAN specifications 2.0A/B and FD </br>
• CAN FD support for ISO and Non-ISO standard software switchable </br>
• CAN FD bit rates data field (64 bytes max.) from 25 kbit/s up to 12Mbit/s. </br>
• Class CAN bit rates from 25 kbit/s up to 1 Mbit/s; </br>
• Time stamp Resolution Up to 1 us; </br>
• Signal &Power Separately Isolated Up to 2500 Volts against USB; </br>

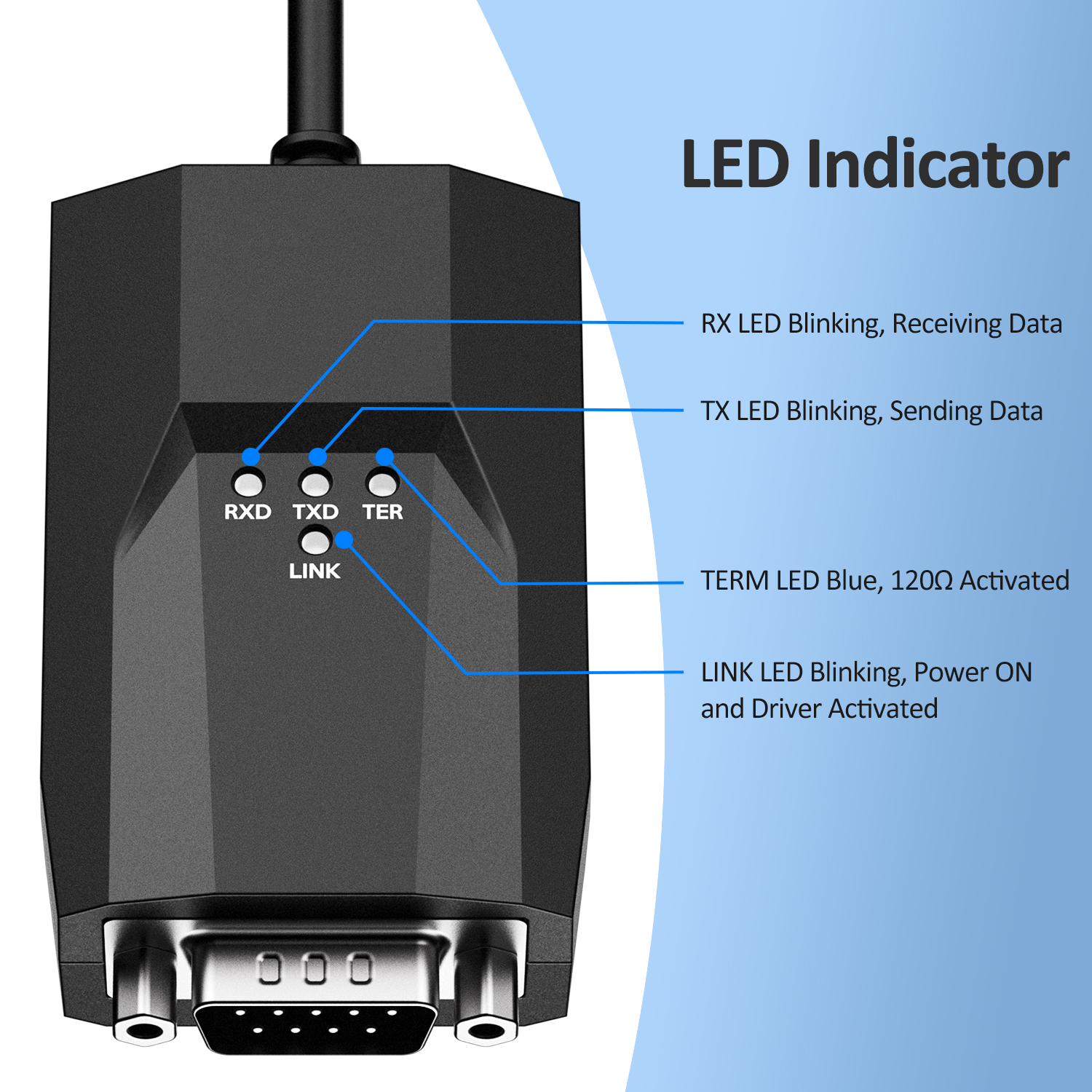

• CAN 120ohm termination resistor Activated/Deactivated Through Software; </br>
• Support CAN Clock Settings.</br>
• Measurements of bus load including error frames and overload frames on the physical bus </br>
• Induced error generation for incoming and outgoing CAN messages </br>
• Extended operating temperature range -40 – 85C (-40 – 185F) </br>
  </br></br>

3 System Requirements

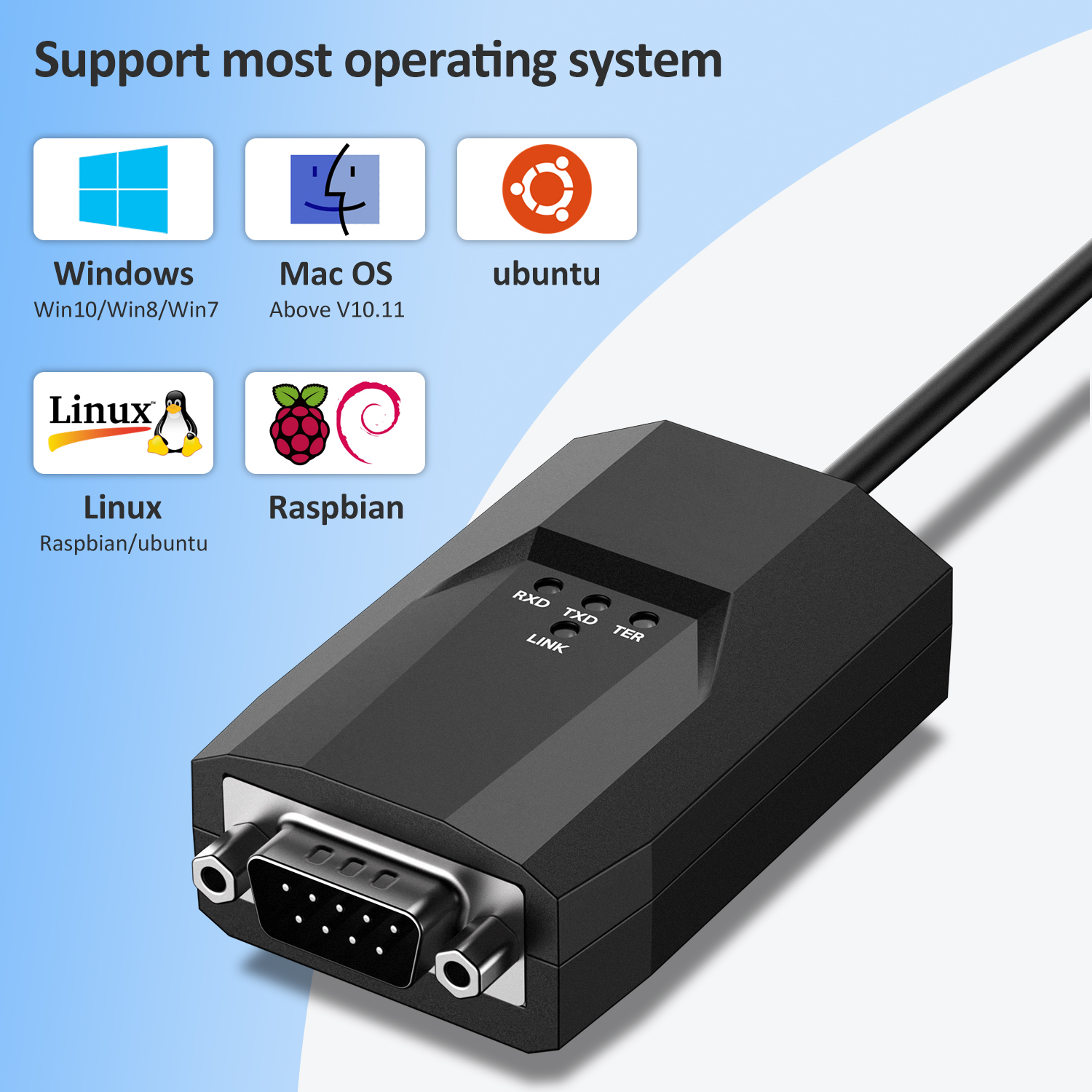

• Operating system Windows 10, 8.1, 7 (32/64-bit) or Linux (32/64-bit)
• A vacant USB port (USB 1.1, USB 2.0 or USB 3.0 ) at the computer or at a USB hub connected to the computer

4 Scope of Supply

• PU2CANFD-C Cable CAN FD interface drivers for Windows 10, 8.1, 7 and Linux (32/64-bit) </br>
• CAN monitor PCAN-View for Windows </br>

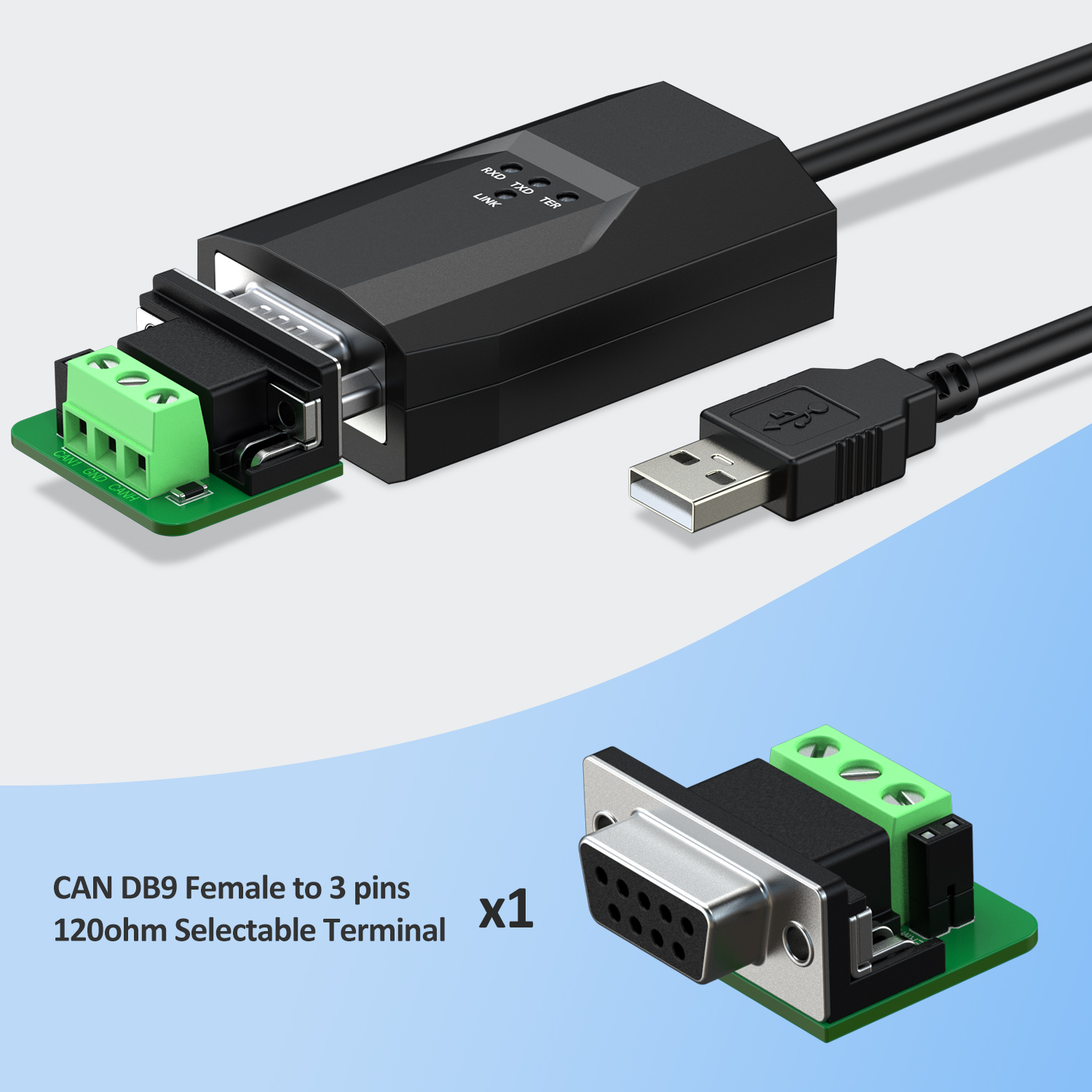

• Dual DB9 To Terminal Adapter Board with 120ohm TERM RESISTOR Selectable By Jumper </br>
• Programming interface PCAN-Basic for developing applications with CAN connection </br>
• Programming interfaces for standardized protocols from the </br>
• Manual in PDF format </br>

5 Protocols

• CAN 2.0A (standard format)
• CAN 2.0B (extended format)
• CAN FD ISO 11898-1:2015
• CAN FD non-ISO </br>
• CAN bit rates 25 kbit/s up to 1 Mbit/s
• CANFD bit rates 25 kbit/s up to 12Mbit/s

6 Software Support

• Windows PCAN-VIEW
• Linux PCAN-VIEW Instruction
• Linux SOCKET-CAN:CAN Utils
• SavvyCAN

7 API For Windows And Linux.

• C#, C++/CLR, Delphi,VB.NET, Java, Phyton 2.6
• SavvyCAN

8 Specification
