USB To CAN FD Series Products

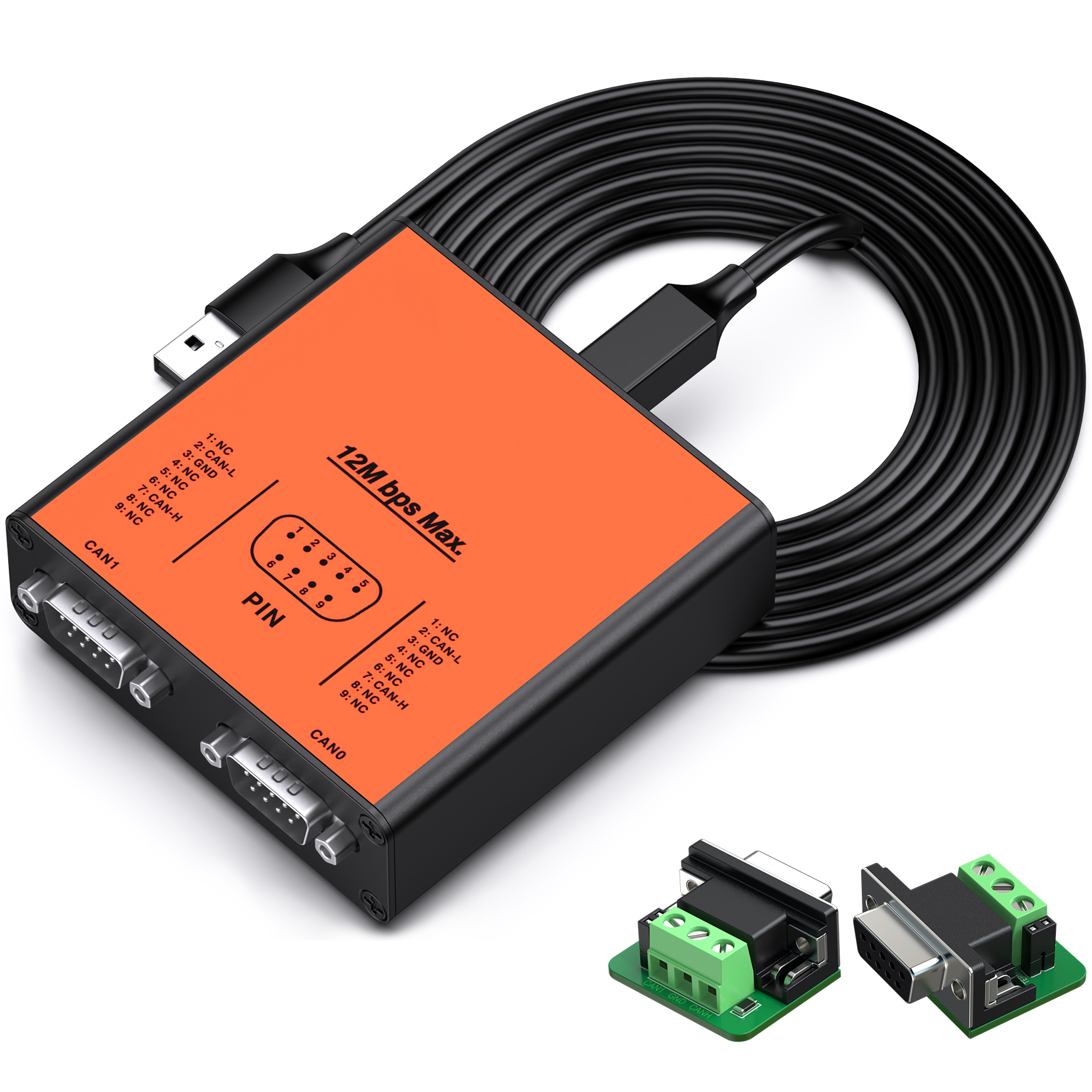

PCAN-USB PRO FD IPEH-004061 PU2CANFDX2
- High-speed USB 2.0 To Dual Channel CANFD Converter (compatible to USB 1.1 and USB 3.0),Compatible with CAN2.0A,CAN2.0B,CAN FD,Software Compatible with PCAN System;
- CAN FD bit ratesfrom 25 kbit/s up to 12Mbit/s,Timestamp resolution up tp 1us;
- Built in 120Ω Term Resistor,Support CAN Clock Settings
- Provide English Windows/Linux Software,C#, C++/CLR, Delphi,VB.NET, Java, Phyton 2.6 API
- Provide English UserManual, Support Socket CAN Provide CAN-UTILS/C/Python demon and source code
Manual:
- https://docs.123buyelectronic.com/home/
Software:
- https://docs.123buyelectronic.com/home/
PCAN-USB FD IPEH-004022 PU2CAN-C
- The PU2CANFD-C is a plug and play high speed USB2.0 to CANFD Cable with 1 metre high quality wire-shielding cable enble the CANFD connection to CAN networks from a computer. CANFD channel is isolated against USB with a maximum of 2500V.
- The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s, PU2CANFD-C supports 120ohm termination resistor enable by software.
- CAN bus connection via D-Sub, 9-pin (in accordance with CiA@303-1)
- Provide Drivers for Windows/Linux, Compatible with windows PCAN-View,Linux Socket CAN,SavvyCAN.
- The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN connection are included in the scope of supply and support the new standard CAN FD.
Manual:
- https://docs.123buyelectronic.com/home/
Software:
- https://docs.123buyelectronic.com/home/
Our Advantage
- 10+ years of development experience;
- C# Python routines and source code;
- Support for custom development;
